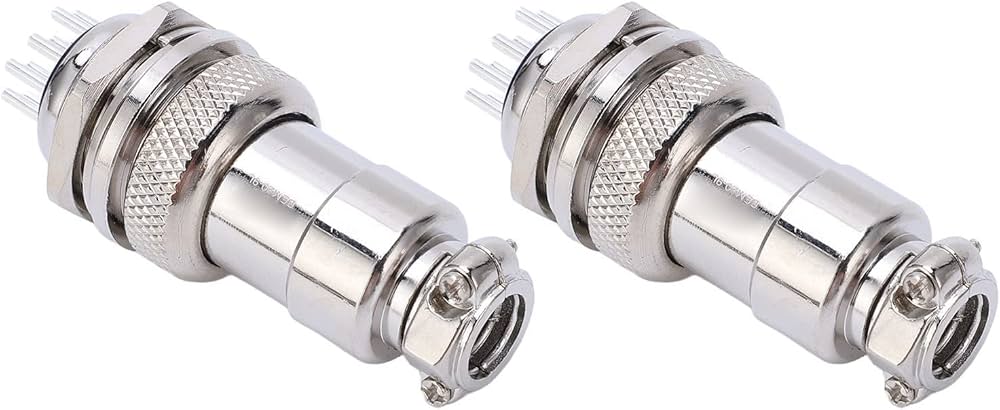

Aviation Connector Plug: Pin, Male & Female Aviation Plug Connectors

An Aviation connector is very important for maintaining electrical connection and properly routing instruments, panels and cables, and other components in advanced aviation and automation industries. This entry explains the contribution of the male and female aviation plug connector, as well as circular plug socket variants and waterproof IP67 options that safeguard contacts and terminals from corrosion. Suitable options integrate thread coupling, seals, and insulation to lock-down wires and reinforce operational limits, from gx12 and gx16 to gx20 and m12 variants. With the choice of a 4 pin female socket to a 12 pin panel connector, the ideal electrical connector is aimed at improving cross-function compatibility, operational durability, and application safety. For more in-depth information you should view from Aviation Connectors Manufacturer&Supplier – Soulin

Aviation Connector Overview

An aviation connector is a circular connector made for easy secure electrical interfacing betweeW wires, cables, and machinery in aviation, automotive, battery management, and instrumentation systems. Typical assemblies consist of a connector housing, metal male and female shells, crimp or solder terminals, and a cap for environmental protection. Many of the series include gx12, gx16, gx20, and m12, and they have features such as thread locking, copper contacts, and waterproof IP67 seals to protect against sudden contact with liquids. Panel connector versions mount through a plate with given diameter and dimension, while cable-mounted plugs and sockets provide routeing flexibility. Proper gauge diameter matching and insulation provides a unique, dependable, low-resistance contact. View Aviation Connectors Manufacturer&Supplier  – Soulin for More Details

Understanding Aviation Connectors

A plug-and-socket system designed to join electrical wires, cables, and devices is called an aviation connector. Aviation connectors include sturdy military-grade and commercial connectors. Aviation connectors have unique circular housings that twist or snap into place. These connectors have a variety of connectors on the male and female ends. Up to 12 contacts can be housed on a 1.5-inch connector. These connectors can be used in many ways, including waterproof IP67.

Aviation Connector Types

Aviation connectors are families of connectors that include GX12 (12 mm diameter), GX16 (16 mm), GX 20, M12 as well as custom Deutsch connectors, and Molex connectors for certain systems. Depending on\ the purpose, these connectors may be male and female aviation connectors and may include 4-pin female sockets, 5-pin plug/socket pairs, and 12-pin panel connector kits. Designs may be varied and include wire connector crimp styles, and solder-pin aviation connectors with male and female shells, which can be bought separately, or as matched pairs. Users can select waterproof, IP67 rated housings with optional caps, metal male and female housings, and panel mounts that have the correct mounting hole dimensions and threads to simplify installation.

Usage of Aviation Connectors

Aviation connectors are extensively utilized across aviaiton and aerospace, automotive, battery packs, and industrial automation tools that need dependable electrical connections; for example, panel connectors on control console, aviation cable connector to sensors, and control plug socket for power and signal distribution. Aviation connector plug assemblies that are circular and waterproofed are meant to safeguard wires and contact edges during prolonged outdoor use of devices and for situations where outdoor and physical vibration scenarios. Fit gx12, gx16, gx20 formats also serve to satisfy the requirements of small footprint of the devices. To support longevity of the connectors and devices, use of connectors with compatible brand devices and adequate 12 pin power-signal hybrid, amp, copper wire, crimped terminals, and core designs are required. For exemplary, 4 pin communication, connectors are also recommended.

Plug Connectors in Aviation: Male and Female

Electrical systems in aircraft use male and female aviation connectors to join and separate cables and mechanisms in a resistant and aircraft-approved manner. Aviation connectors come with a housing unit, contact pins, insulation, and a seal with an IP67 waterproof rating. In the series: GX12, GX16, GX20, and M12, the screw thread coupling closes the plug sockets to avoid vibrations, and caps cover the sockets for protection. There are also 5, 12, and 4 pin configurations, and with the correct wire-gauge, mounting dimensions, and brand compatibility, the systems are able to perform in a safe and automated manner in instruments and vehicles.

Overview of Male Aviation Connectors

Aviation plugs are made to bare pin contacts housed in a solid housing with a shell designed to be strongly coupled to an aviation plug socket. Male aviation connectors in gx12 (12mm diameter), gx16 (16mm), gx20, and m12 variants of the connector’s male body uses a screw thread to secure a positive lock into a connector socket, panel mounted, or cable mounted to achieve a portable connector for a reliable secure electrical connection. Aviation plug depins are configured as 2 3 4, 4 5 12 pin layout because of the varying signal, battery power and current of the, matched awg and voltage drop used. Waterproof ip67, crimp or solder terminals or internal insulation with podibe seals to maintain sufficient contact during vibration and encapsulate wiring to maintain reliable contact during vibration.

Operating Female Aviation Plugs

Female aviation connectors contain recessed socket contacts intended to receive the pin and thus reduce accidental contact for enhanced safety. A few of the variants consist of 4 pin female cable plugs, panel sockets with compatible dimension plates, and waterproof models with capped protective coverings. The shell of the connectors usually has a screw thread or a bayonet for quick locking, and the interface seals keep the interior of the connector console waterproof. Customers choose gx12, gx16, gx20, or the m12 families by the diameters of the connectors and their intended use, guaranteed cross-brand compatibility with deutsch connector or molex.

Good crimp technique, insulation, and copper socket quality contribute to reliable electrical performance even under the stress of the automotive and aviation industry.

Differences Between Male and Female Connectors

The main difference is the configuration of electrical contacts: the male aviation plug has cylindrical contacts while the female has mating cylindrical sockets. For panel mount connector arrangements, the female connector is usually mounted on the panel to cover live terminals, and the male connector is mounted on the aviation cable connector to facilitate easier disconnection. In terms of mechanical differences, the length of threaded engagement, the depth of the connector housing, and the location of the sealing element that define the waterproof IP67. On the electrical side, it would be the 4 pin, 5 pin, and 12 pin density, the compatible AWG and the current rating. Choosing among the GX12, GX16, GX20 and M12 involves checking the diameter, plate cut out size, PCS kit contents, and male and female connector inter-brand compatibility.

Aviation Plug Specifications

Aviation plug specifications define how an aviation connector manages electrical performance, mechanical security, and environmental protection across instrument, automation, and automotive systems. A circular connector housing with thread coupling and a seal ensures a reliable interface between cable and panel assemblies, while copper contact geometry and awg range support designated current rate and voltage. Typical families such as gx12, gx16, gx20, and m12 describe the diameter, plate cutout dimension, and mating style, with waterproof IP67 options guarding each terminal from moisture and dust. Proper selection of pin layouts, wire connector style, and compatible brand interchange, including deutsch connector and molex, ensures consistent results.

Pin Configurations: 4-Pin and 5-Pin

Common pin configurations in an aviation plug connector include 4-pin and 5-pin layouts, providing flexible routing for signal and battery power on electrical wire. A 4-pin female arrangement often separates power and data, while a 5-pin variant can add ground or shielding continuity for sensitive instruments. In GX12 (12 mm) and GX16 (16 mm) circular families, the pin connector pattern is keyed to prevent misalignment, and insulation maintains creepage and clearance. Engineers specify AWG to match current rate, then choose crimp or solder terminals to achieve low-resistance contact. Waterproof IP67 and cap accessories protect the plug socket when unmated.

Socket Types for Aviation Connectors

In aviation connector systems, socket types cover panel connector receptacles, and cable-mounted female aviation sockets, each designed for optimized ease of installation and serviced. For panel sockets, the connector housing is secured with a threaded nut from behind the plate and a front panel seal keeps the unit waterproof. Cable sockets have strain relief for the aviation cable connector, and may have fast assembly via crimp terminations. Socket types include 4-pin female configurations, 5-pin, and 12-pin versions across the gx12, gx16, gx20, and m12 series, with all intended for brand cross-compatibility where standards allow. For dependable electrical performance, metal male and female shells contain proper insulation and copper contacts.

Common Sizes: GX16 and M Series

The gx16 series has a diameter of 16 mm with a threaded panel connector that offers a good balance between compactness and sturdiness. It comes in 2 3 4, 4, 5, and 12 pin configurations with crimp, solder, or waterproof (IP67) options. M series, which is compatible with the gx16 but offers m12 (standardized, compact, high vibration for automation sensors) provides more options such as smaller dimensions and high vibration. With both the gx16 and m12 connectors, the male and female halves are securely and perfectly mated in a plug and socket interface. With the correct panel cutout, wire gauge, and the appropriate brand accessories (caps and pcs kits), reliable integration of aviation and automotive components is assured.

Choosing a Suitable Aviation Connector

Matching an application’s requirement to a connector’s geometry, materials and seal type is the first step to choosing an aviation connector. Engineers evaluate pin counts (4, 5, or 12), expected current draw, and compatible AWG wire gauges for each wire in the connector. For the connector housing style, GX12 (12mm), GX16 (16mm), GX20, and M12, the connector must fit the panel and plate cutout, and provide a secure threaded or bayonet coupling. Environmental conditions dictate the choice of IP67 waterproof seals, caps, and insulation. Connector style (crimp or solder terminal), wire choice, and other severe-use standards from the connectors’ brands should be adequately regarded to assure the dependable performance in connectors made for the aviation, automation, and automotive industries.

Criteria and Considerations to Determine Which Connectors to Use

Some notable specifications may involve pin arrangement and contact retention where 4 and 5 pin sets allow for the routing of both power and signal, while 12 pins allow for a more dense framework of instruments.  Mechanical fit involves matching the diameter and plate dimension as to gx12, gx16, gx20, or m12 series, in addition to thread engagement and depth of the connector casing. Environmental waterproofing, protection of the caps, and and insulation of the entire unit. Adaptability of different brands may lead to the selection of a  crimp or solder terminal method.

Leading Brands in Aviation Connectors

Well-regarded brand aviation connectors will feature consistent materials, specific pin connector tolerances, and validated ip67 sealing. Surrounding gx12, gx16, gx20, and m12 ecosystems have fully developed extensive male female panel and cable accessory offerings with caps, strain relief, and panel connector equipment. Numerous rivals in the industry provide compatibility with offerings containing metal male female pods, copper contacts, and particular 4-pin female, 5 pin, and 12 pin offerings designed for rapid instrument integration. For mixed fleets, cross references with molex and deutsch connector part families permits creation of hybrid wiring harnesses while maintaining reliable performance. Brands offering comprehensive datasheets on awg, rate, and plate dimension will make for easier and less unpredictable installations along with prolonged service.

Evaluating the Rating and Performance of Aviation Connectors

Performance ratings encompass major fields like electrical, mechanical, and environmental control. Rating current and voltage must match the awg and copper contact shape to avoid thermal runaway over a pin. Mechanical stamina involves the number of cycles for mating, threading fortified, vibration absorption of coupling sockets. Environmental categories like waterproof ip67, assure the closure of the the plug socket and panel boundary moisture and dust seals to the terminal. Families like gx12 (12mm) and gx16 (16mm) indicate diameter and also control plate cutouts and connector housing tolerances to assure a stable contact resistance. Testing done by the brand trustee, insulation wholeness, and relief of sectional strain, adds to a connector you can count on for aviation cable.

Installation and Maintenance of Aviation Connectors

Aviation plug connectors are critical components of aircraft, automation, and automotive systems and in order to achieve dependability of their functionality, quality installation and maintenance are required. In the course of installation, it is necessary to match awg to crimp barrels and/or solder cup dimensions, double check thread engagement, and seal the alignment gaps of waterproof IP67 systems. In the course of maintenance, cable routing should be done in a way that avoids causing acute bends around the connector housing and is designed to alleviate strain at all of the connector terminals. Maintenance is concerned with the ongoing maintenance of the contact surfaces, plug socket seals, and panel connector closure components. Correctly carried out, the maintenance will preserve the components of the panel connectors. With the use of correct plug caps, proper cleaning products, and the correct torquing of the connectors, the maintenance will successfully preserve the components of the panel connectors. In the maintenance of the plug connector assemblies, electrical continuity in challenging circumstances is guaranteed.

Best Procedures for Installing Aviation Plugs

Start by checking the pin configurations for the 2 3 4 , 4 pin , 5 pin , or 12 pin arrangements against the instrument schematic. Prepare the electrical wire to the appropriate gauge, then either perform a controlled crimp or solder to each terminal, each pull-test, and wick-solder for terminal and solders. Fit a strain relief and route the cable to minimize bending at the connector. For panel mount connector installations, check the diameter and plate size for gx12 or gx16 cutouts and apply the appropriate torque to the threaded nut. If seals are to be lubricated, do so, and ensure the cap seats correctly, then check for continuity and insulation resistance. Finally, join the male and female halves of the connector and check for waterproof ip67.

Consider scheduling regular inspections to verify that all contacts, seals, and plug sockets are cleaned and examined with the appropriate tools. Oxidation and debris build-up on copper contacts are present and insulation may require replacement. Worn o-rings should be replaced to maintain the insulation’s waterproof seal. Check aviation cable connector’s strain relief, thread engagement, and the back shell to ensure the connector does not have any housing cracks. With changes in loading, also monitor awg to ensure the rate stays within limits. Replace caps on unmated circular connectors and ensure that pcs are stored in dry environments. For gx12, gx16, gx20, and m12 systems, re-torque panel hardware and check for all ranges of continuity, contact resistance and dielectric strength to ensure reliable operation.

Common Issues and Fixing Them

Common problems such as intermittent electrical contact can occur due to an improperly crimped terminal and bent pins in the aviation connectors, or female sockets may be dirty. Misaligned seal losing waterproofing, damaged O-rings, and inadequate torque on threads all risk losing IP67 protection waterproofing. Overloaded circuits or using the wrong AWG may be the cause of elevated temperatures which can cause the insulation on wires to degrade. Troubleshooting includes carrying out visual inspections, continuity testing, and pin-to-pin checking against the provided wiring diagrams. Damaged pins should be realigned or replaced, faulty terminations should be re-crimped or soldered, and caps or seals should be replaced. For the gx12, gx16, gx20, and m12 connectors, verify the plate dimensions and the alignment of the male and female connectors to ensure that compatible parts from the same brand are used to restore proper functionality.
