Getting To Learn More about Aluminum PCBs before Making a Choice

In general terms, the aluminum substrate is considered to be a metallic coated copper plate, which comes with major heat dissipation function. The generalized single panel comprises of 3 layers. Those are circuit layer or the copper foil, insulating layer and the metal base. For the high end usage, there are some designs associated with double layers. Those are circuit layer, insulation layer, aluminum base and circuit later. There are hardly few applications, which are considered multilayer. It can be made from the ordinary multilayer plate and the insulation one. There remains an aluminum base to it as well. More people, these days, are trying to use the aluminum PCBs to cover up their business needs.

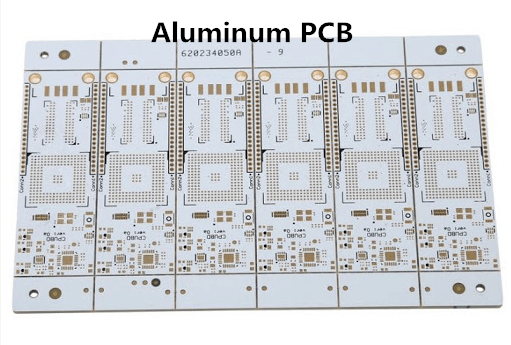

Aluminum PCBs before Making a Choice

The difference you can track between the standard and aluminum PCB:

There are different materials that can be seen used in printed circuit boards. Each one will have its different use noted. The printed circuit boards with the aluminum core will have different properties when compared to the standard printed boards, which will not have metal substrates.

  • These are two of the widely used printed circuit board types, which are pretty popular in the consumer electronic area.
  • In case you want to know whether the aluminum PCB works better than the standard printed board or not, it solely depends on your major usage purpose only.

Getting to learn the pros and cons involved:

There are so many reasons for people these days to start using aluminum pcbs. Learning about the pros and cons will help you make the best choice even when the market has some standard options. So, without wasting any time further, be sure to check out the positive and negative sides of PCB, just to be sure if you are making the right choice or not.

Pros:

  • When it comes to the costing of aluminum based PCB, you don’t have to invest much money for the same.
  • Also remember that aluminum PCB will be quite strong in nature even though it is pretty light in weight, especially when compared to the base materials available for standard boards.
  • If you are looking for a PCB, which is noted to be environment friendly, then an aluminum PCB might be the right choice for you.
  • The substrate version of the aluminum allow can always lower the breaking risk of the aluminum based PCB in here.
  • The higher heating tolerance is yet another positive sign with the aluminum PCB, which is hard to get with the other alternatives. Such higher heat tolerance will deal with the higher density circuit and even with larger power levels.
  • Mainly because of promising thermal conductive features, the aluminum PCB can always keep heat away from any of the vital components and will prevent any form of circuit damage.

Cons:

  • If you compare the rate of the aluminum PCB to the standard one, the former is pretty expensive. However, it will always be within your pre-set budget plans.
  • In case your task is not associated with higher temperature, then aluminum PCB might not be the right choice for you.
  • On the other hand, one negative point is that the aluminum based PCB is not able to withstand way too much of stress or the vibration stress.

Going on with the types:

Once you are sure of the pros and cons, it is time to focus on making a purchase. The pros are always better than the cons and there are so much more to it. Once you have decided to invest in aluminum PCB, you need to focus on the types available in the market these days. You have through-hole aluminum PCB, hybrid aluminum PCB and flexible aluminum PCB as some of the major options to tune in with.

Get along with professionals:

Checking out the points mentioned above has actually helped you to learn more about aluminum PCB in here. Now, it is time to focus on the credentials of the companies, making these options. Be sure to work with the best experts and they will offer you with top-rated services all around. The experts are happy and ready to serve you with the most promising help of all time.
